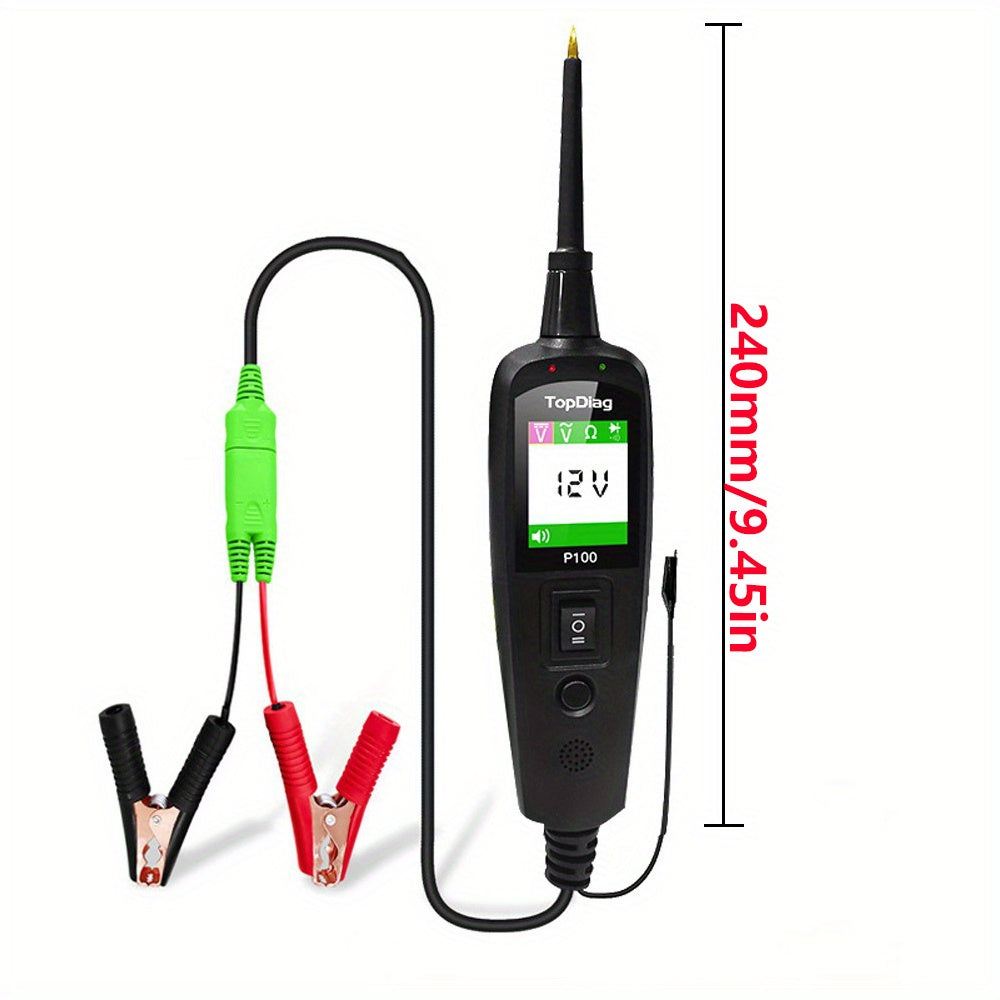

12/24V Multifunctional Car Circuit Tester Power Circuit Probe Kit, Car Battery Voltage/Resistant Tester Diagnostic Tool Component

Power Mode:Room electrical/hard wiring

Operating Voltage:≤36V

Material:Other Materials

Battery Capacity (mAh):0

Item ID:FJ16241

Description
P100 Generation Automotive Electrical Circuit System Tester for Cars and Trucks 0V - 70V General description tool is the best electrical tester, reducing diagnostic time in all 6-30V at vehicle electrical systems after a simple hook-up of the tool to the vehicles's battery, you can:

1. Determine at a glance if a circuit is positive, negative or open without having to reconnect clips from one battery pole to another.
2. Test for continuity with its  -in auxiliary ground lead.
3. By depressing the own switch of tester electric, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.

4. Test for poor ground contacts of this circuit tracer instantly without performing voltadrop tests, the tool is also short-circuit protected its internal circuit break will trip if it becomes over loaded.

Specifications:
1. Display: TFT color display (160 x 128 dpi)
2. Operating Temperature: 0 to 60°C (32 to 140 F°)
3. StoraTemperature: -40 to 70°C (-40 to 185 F°)

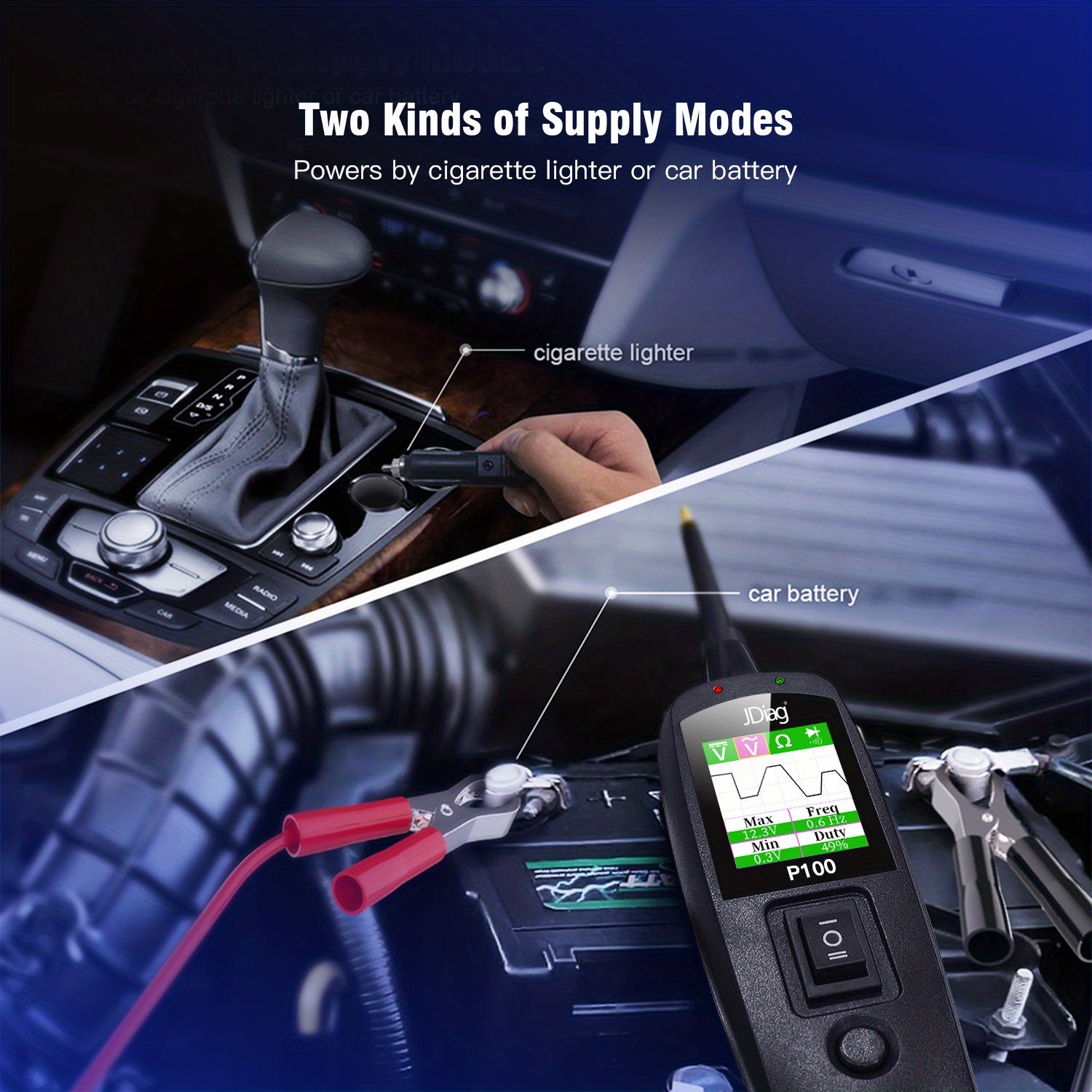

4. External Power: 12.0 or 24.0 V power provided via vehicle battery

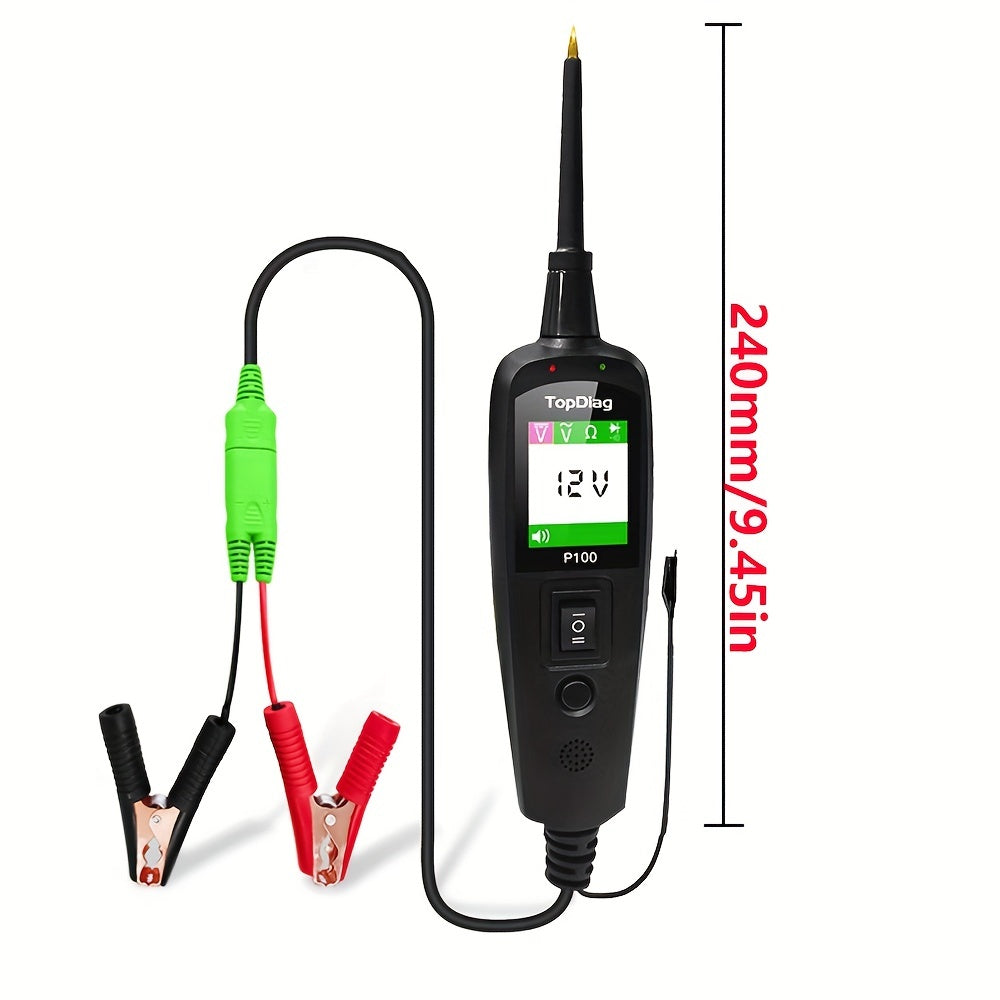

5. Dimensions: Length 165 mm * Width 40 mm * Height 27 mm

Testing Standard:
current : no trip
150% current: trip in one hour
200% current: trip in 3-30 seconds.
300% current: trip in 0.5-4.0

Test Tool Specifications:
DC voltaran: 0-65V +1 digit
Resistance ran: 0-200 K ohm
Frequency response of tone pass through
0Hz to 10K hz.
Circuit Breaker
Rating current: 1-10 Amp

About P100 Automotive Circuit Tester:
Red/Green Polarity Indicator (Positive/negative and tests in different modes will show red/green indicator lights).
LCD HD Color Display (Adopt LCD color screen, the screen is clearer and the data is more intuitive).

Purpose of the P100 Power Circuit Probe Kit :
* Diagnose battery Status

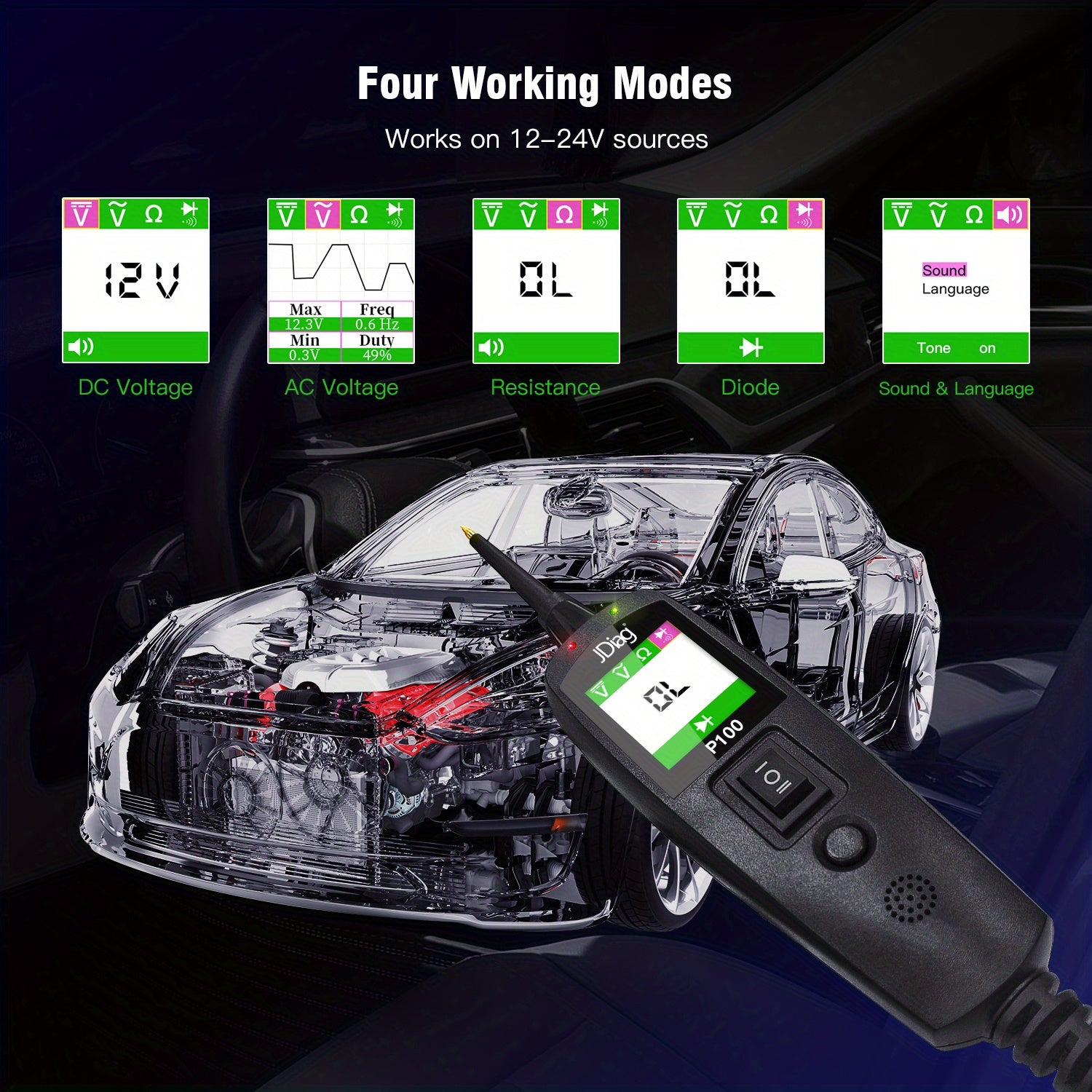

* AC/DC voltage, resistance, diode test
* Componet activation
* Find short circuit
* Find the broke wire
* Find the bad ground
* Testing trailer lights
* Check continuity
* 20Ft extension cable

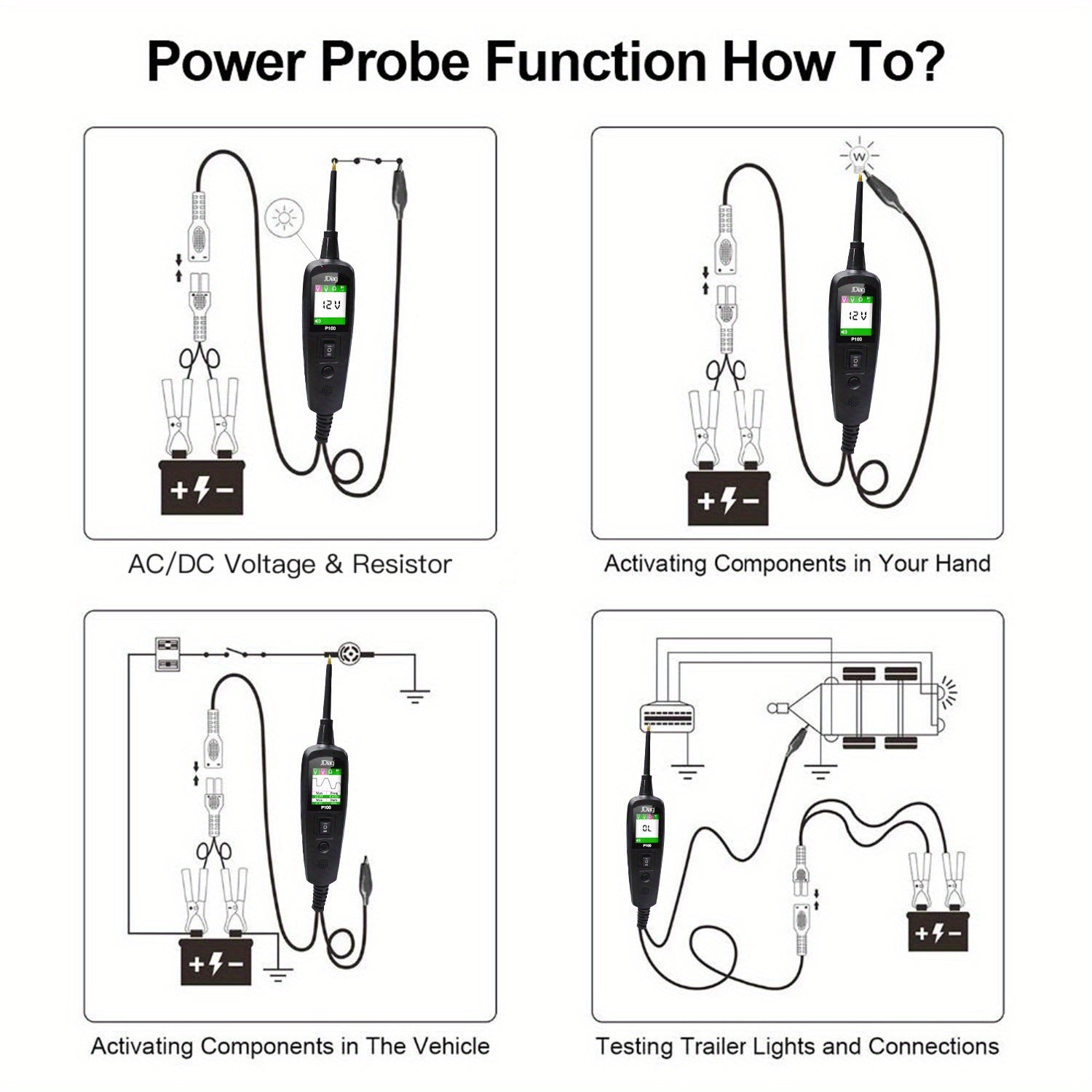

1. Volta& Polarity Testing-Determine DC/AC Voltaand Postive/Negative ly.
2. Resistance Continuity Testing- LCD Screen display the value of resistance.
3. AC Circuit Singal Testing- Fast to trubleshoot the sensors circuit problem.
4. Components Activation in your hand, in the vehicle or W/Ground.
5. Testing Trailer Lights and Connections-10M extension cable allow your to test Cars or Trucks.
6. Checfor Bad Ground Contacts and Locating Short Circuits.

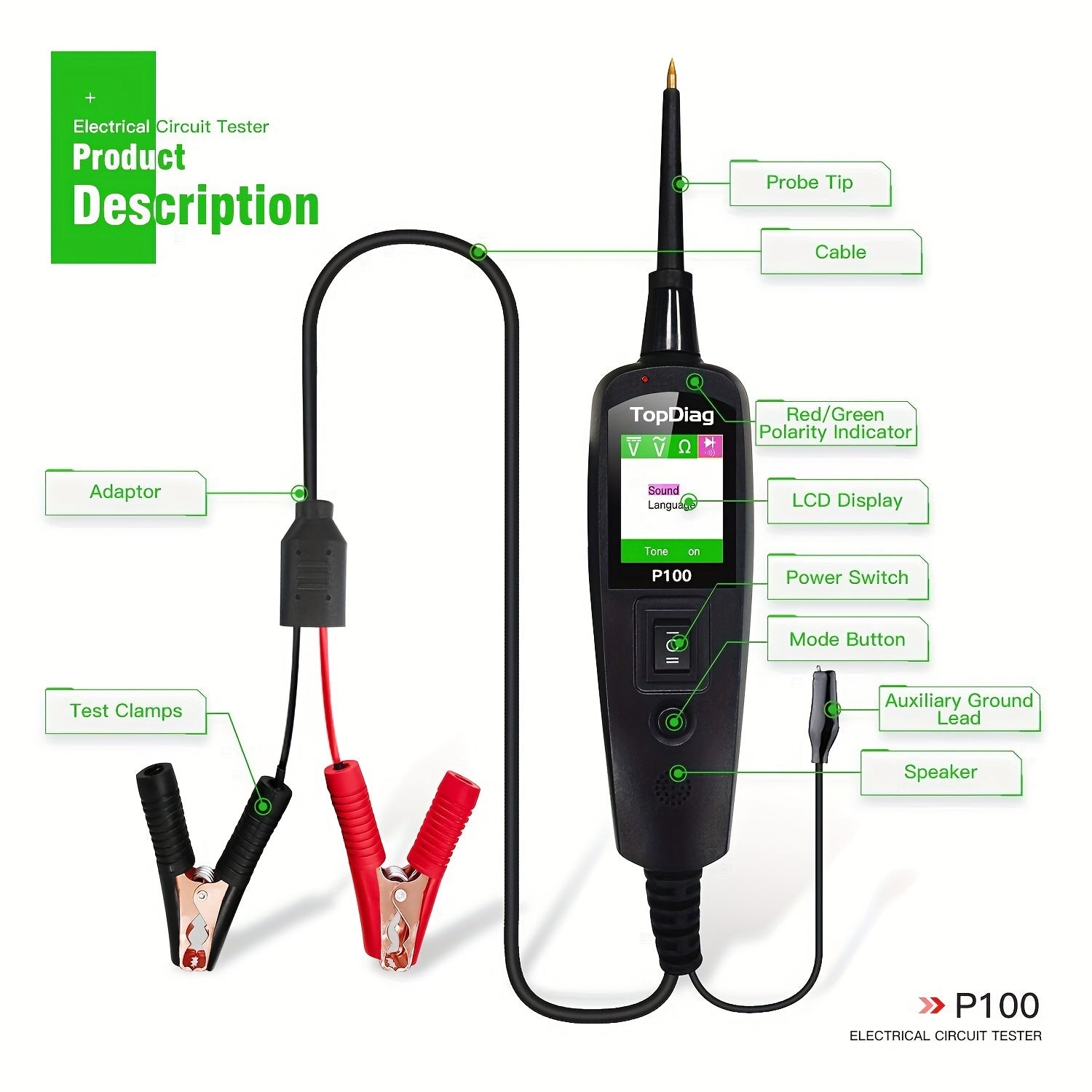

1. Probe tip of electric tester- contents the circuits or component to be tested
2. Head lights- illuminate dark work areas or work areas at night
3. Red/green polarity indicator- identifies positive, negative or open circuits the red indicator lights when the probe tip is contacting a positive circuit the green indicator lights when the probe tip is contacting a negative circuit

4. LED display- indicates test results
5. Power switch- allows you to conduct a positive or negative battery current to the tip for activating and
